Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames

Brand Name : Zetron

Model Number : MIC-200-FD707EX

Certification : CE, ISO13485, ISO9001

Place of Origin : China

MOQ : 1

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 10000 set/month

Delivery Time : 3-7 days

Packaging Details : paper carton

Type : Fixed Flame Detector

Maximum Detection Angle : 120°

Voltage : (18~30 VDC )

Maximum Detection Range : 40m

Size : 120mm* 95mm* 85mm (L*H*W)

Weight : 3(kg)

Contact Now

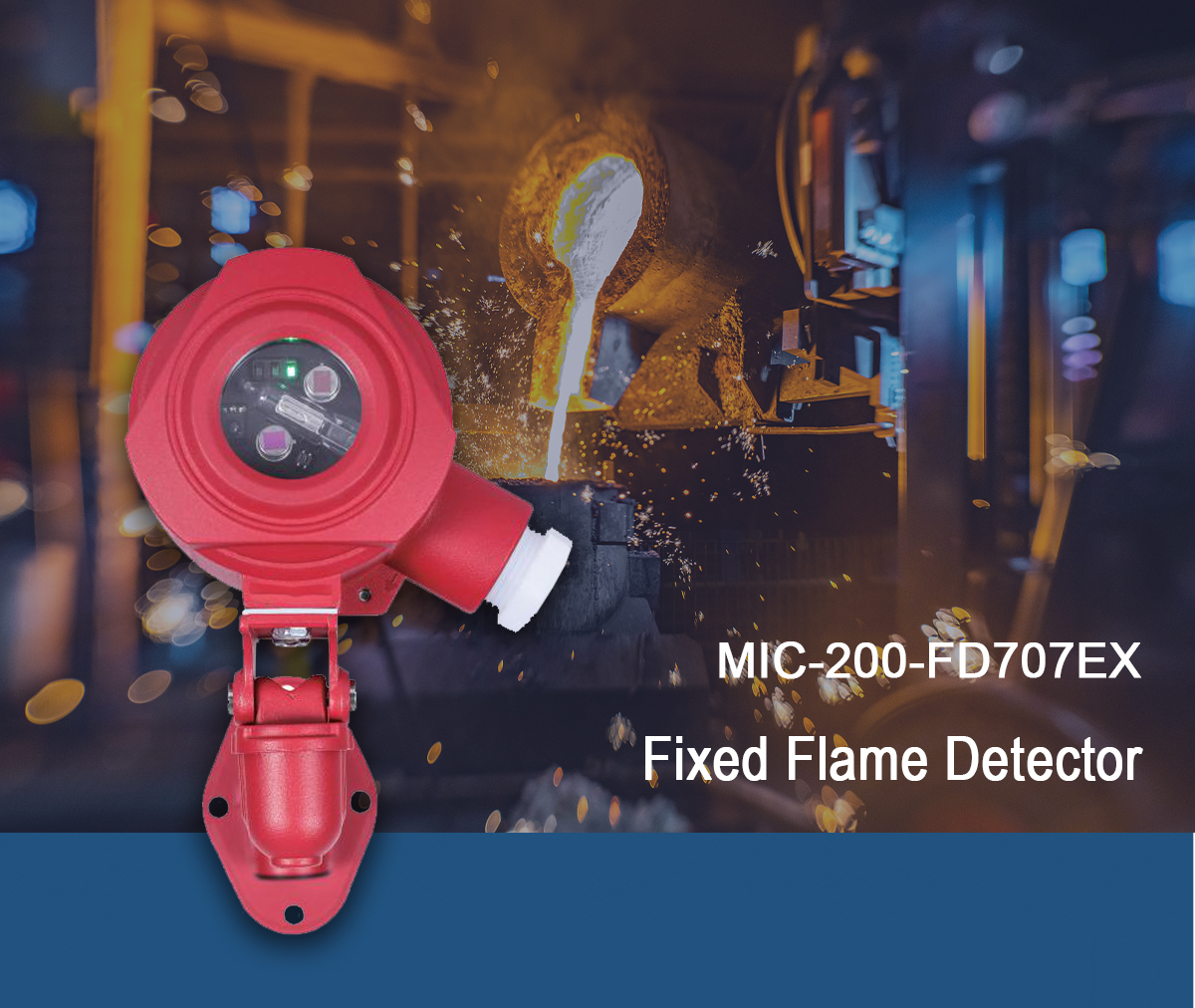

MIC200-FD707EX Ultraviolet&Infrared Flame Detector

OVERVIEW
The detector MIC200-FD707EX combines the latest ultraviolet and dual infrared detection technologies to provide fast, accurate and reliable fire detection, and the patented signal processing algorithm can eliminate false alarm to against wrong light sources, which means it applies to most environment places (Refinery, Loading Rack and Aerosol Fill etc). The UVIR2 flame detector uses a new narrow-band current infrared pyroelectric sensor and the R2868 "sunlight blind" ultraviolet photoelectric sensor from Hamamatsu Photonics Co., Ltd., with a built-in 32-bit microprocessor and patented composite signal processing algorithm. KF715/UVIR2 flame detectors are smaller in size, lighter in weight, and easier to install.

Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames

Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames

Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 FlamesMic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 FlamesMic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 FlamesMic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 FlamesMic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames

SPECIFICATION

Model
MIC200-FD707EX
Spectrum Range
UV 185-260nm IR 4.3-5.0μm
Detection angle
120° 40m
Sensitivity level
Grade I
Main Voltage
24VDC(18~30VDC)
Ex-Atex Protection Level
Exd II C T6 Gb/tD A21 IP66 T80°C
Protection class
IP66 / IP67
Operation method
Infrared remote control
Temperature range
-40℃～70℃
Environmental Storage temperature range
(-40~-158°F)
Humidity:
0 ～ 96%RH (non-condensing) can withstand
100% condensing humidity for a short time
Materials and colors
Cast Aluminum,The coating is an insulating layer,corrosion-resistant, Red
Electrical Interface
1×3/4NPT,M25*1.5,G3/4, optional
Size
120mm* 95mm* 85mm
Weight about
0.7kg

APPLICATION


The detector is widely used in petroleum, chemical industry, environmental protection, metallurgy, refining, biochemical medicine, agriculture, fire control, archaeology, and other industries and places that need safety detection of toxic and harmful, explosion prevention. The detector can effectively predict the concentration of dangerous gas alarms, to ensure that the safety of staff life is not threatened, and production equipment is not lost.

Mic-200-Fd707ex Ultraviolet Infrared Flame Detector Explosion Proof 2 Flames
